Place of Origin : China
Brand Name : CHONGHONG
Model Number : CHXD-03
MOQ : 100PCS
Price : $0.96-1.20
Material : Stainless Steel 304/316
Size : 65mm
Dimension A : 14.0mm
Dimension B : 21.0mm
Dimension C : 65.0mm
Working Load Limit : 270.0kg
Pin Type : Pin Lock
Shackle Type : Swivel Shackle
Shape : P
Surface Treatment : High Polished
Technology : Precision Casting
Measurement System : Metric
Color : Silver
Size Inches : 5.79x3.15x0.75inches
Note

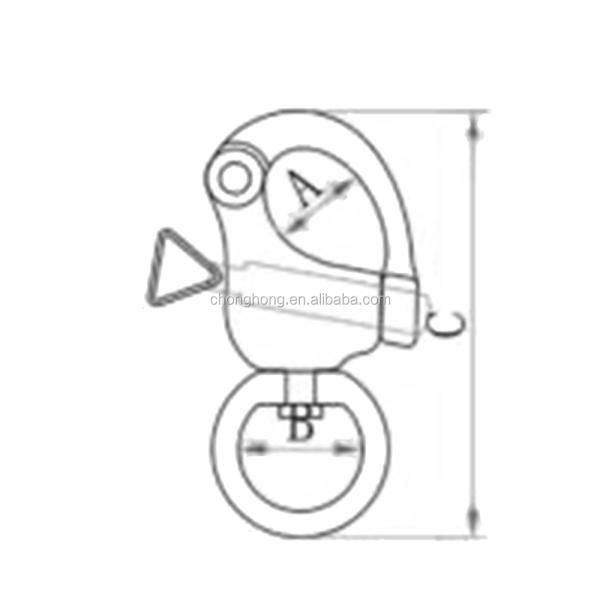

| Size | A | B | C | WLL(kg) |
| 65mm | 14.0 | 21.0 | 65.0 | 270.0 |






| M.O.Q | 100PCS |
| Delivery time | 10-20days after order confirmation |
| Notes | Special specifications and marks can be made according to customers requirements; |
| Other related products | Eye bolts,Turnbuckles,Wire Rope Clips,Shackles ,Chain accessories,Load binders,Hooks,Thimbles,Connecting Links,Master Links,Anchors,Lashing fittings and many other rigging hardwares. |


Chonghong is specialized in producing, supplying, developing Anchors, Anchor Connectors, Marine Hardware Cleats, Hinges, Hold Down Clamps, Rigging Hardware like Snap Hooks, Quick Links, Spring Snaps, Spring Hooks, Turnbuckles, Shackles, Snap Shackles, Wire Rope Thimbles, Wire Rope Clips, Wire Ropes, Swivels, Pulleys, Tri-glides, Belt Buckles, Swage Sleeves, Eye Bolts, Eye Nuts, Eye Plates, S Hooks, O Rings, D Rings, Triangle Rings, Brass Hardware, Chains,Gas Spring, Gas Spring accessories and so on.
Chonghong also has ability to make the customized products for you. You are welcome to send us your drawings or samples for tooling with us. We are very, very happy to deal with everybody with the same level of good old fashioned service.
Please feel free to contact us if you need any information or have any comment.




|
|

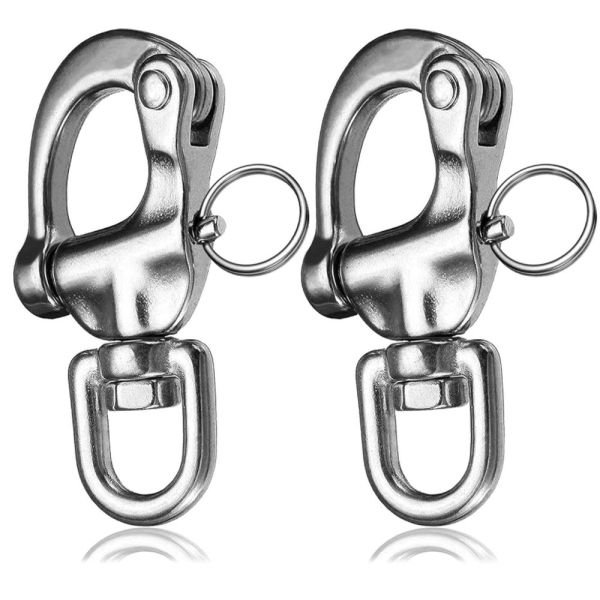

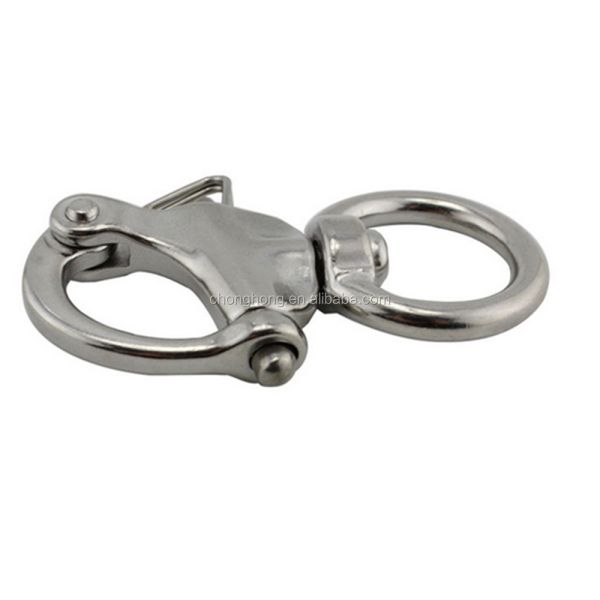

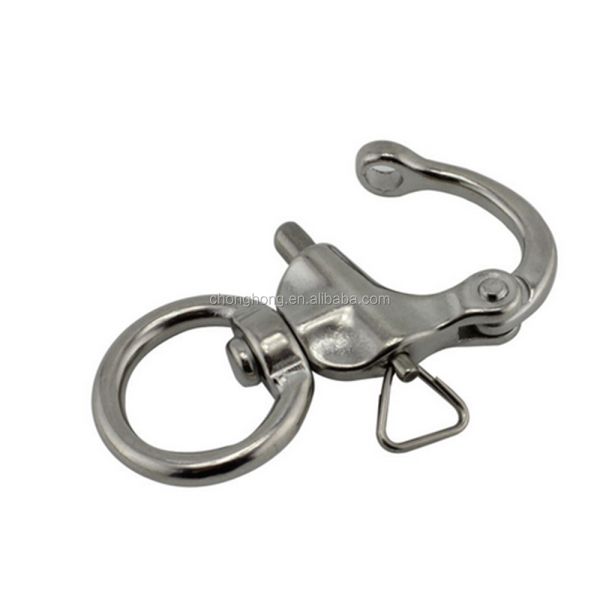

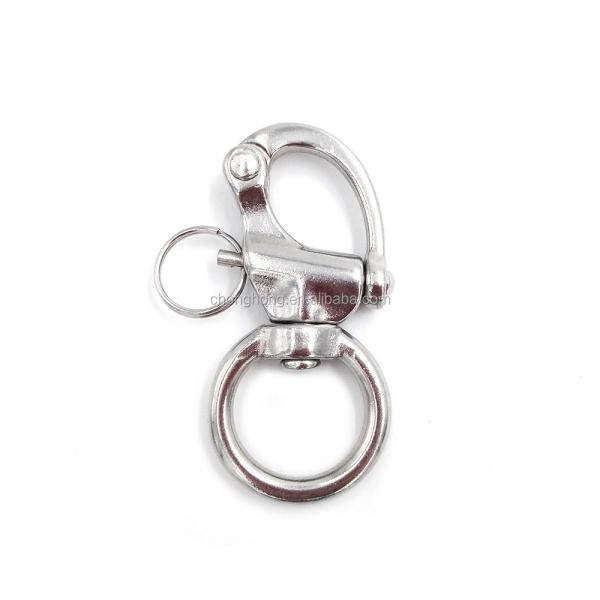

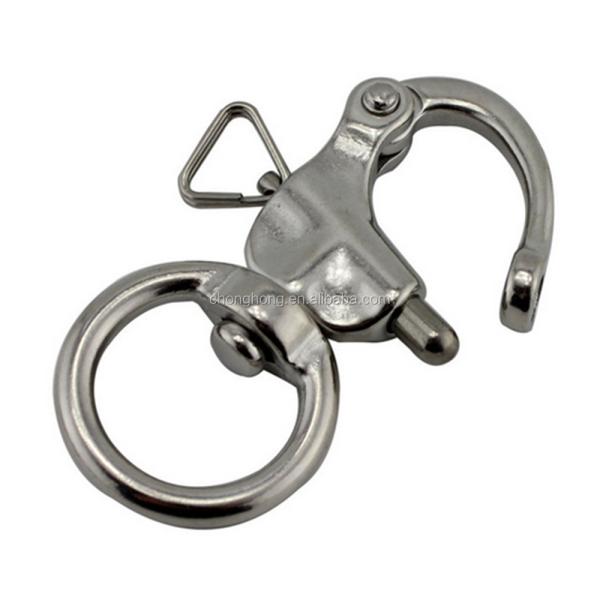

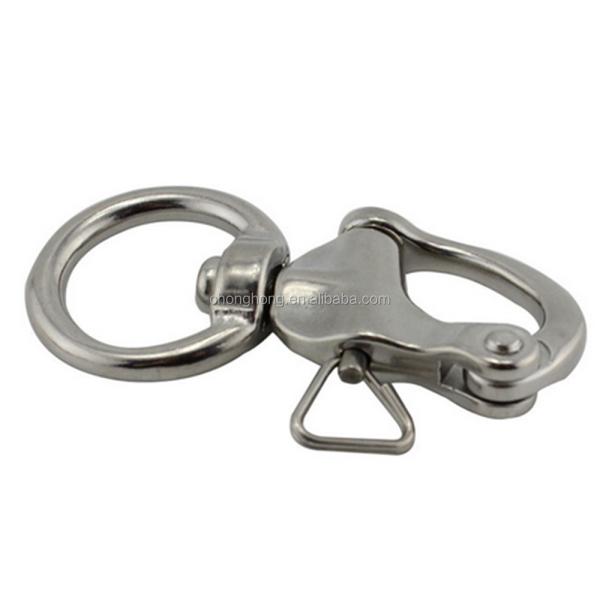

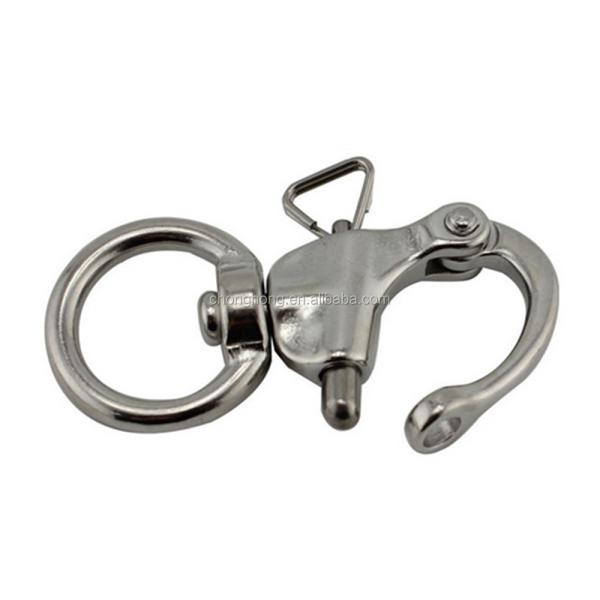

316 Stainless Steel Swivel Snap Shackle 65mm Metric Pin Lock Images |
